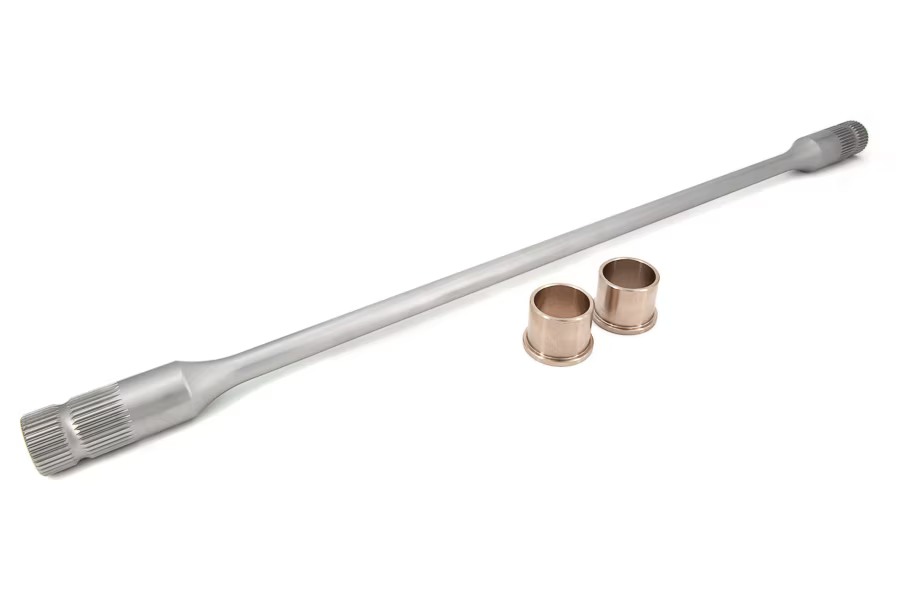

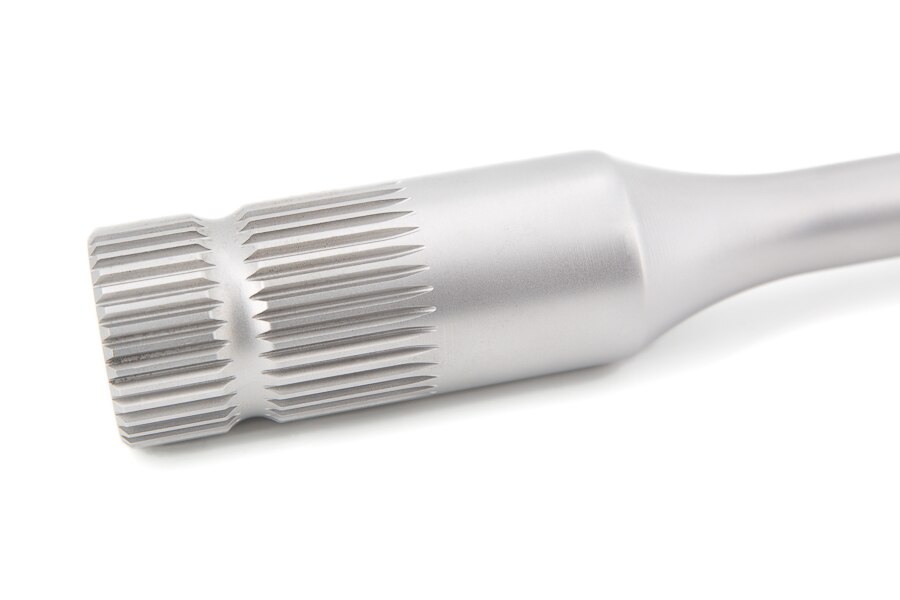

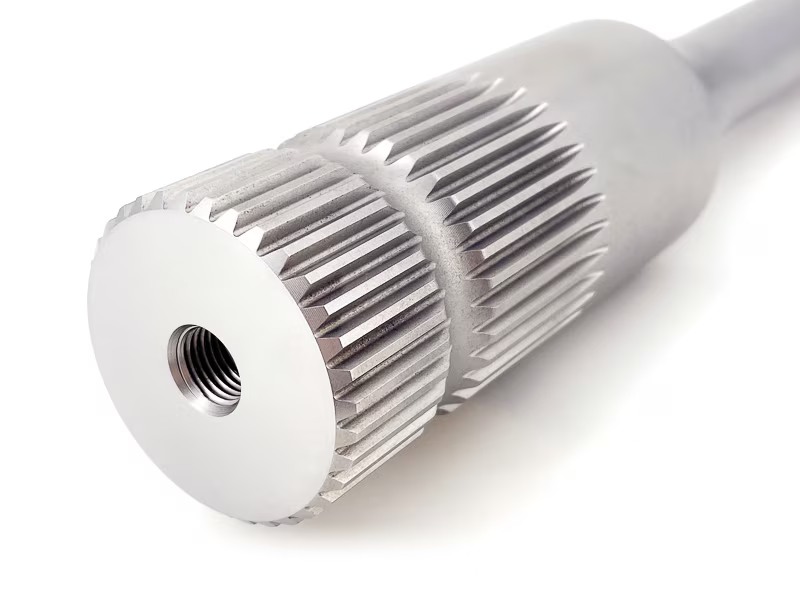

Spidertrax 300M Sway Bar Shaft 35 Spline, 45-50 in.
The sway bar axle shaft is at the heart of every sway bar solution, and we ask an awful lot out of them in rock crawling and racing alike. While matching stability and a high angle of twist is no easy feat, with over two decades of axle shaft design and manufacturing expertise, we are excited to introduce the industry's strongest sway bar axle shaft. Coupled with our Sway Bar Arms, our complete Sway Bar Shaft solution is hands down the best yet. We start with domestically sourced Ultrahigh Strength 300M steel. Out of the gate, we're over 20% stronger than the 4340 sway bar shaft solutions on the market, but we're just getting started. Using this high silicone material, we can heat treat our Sway Bar Shafts in a perfectly sealed vacuum. This vacuum process allows controlled decarburization at the surface with an accuracy of 0.0003". The final result is a pure sway bar shaft surface, providing superior fatigue resistance in cycling and twisting.
- Spidertrax part number: SWB35M5
- Category: Spidertrax Sway Bar > Sway Bar Shafts
- Delivery time: approx. 6 weeks

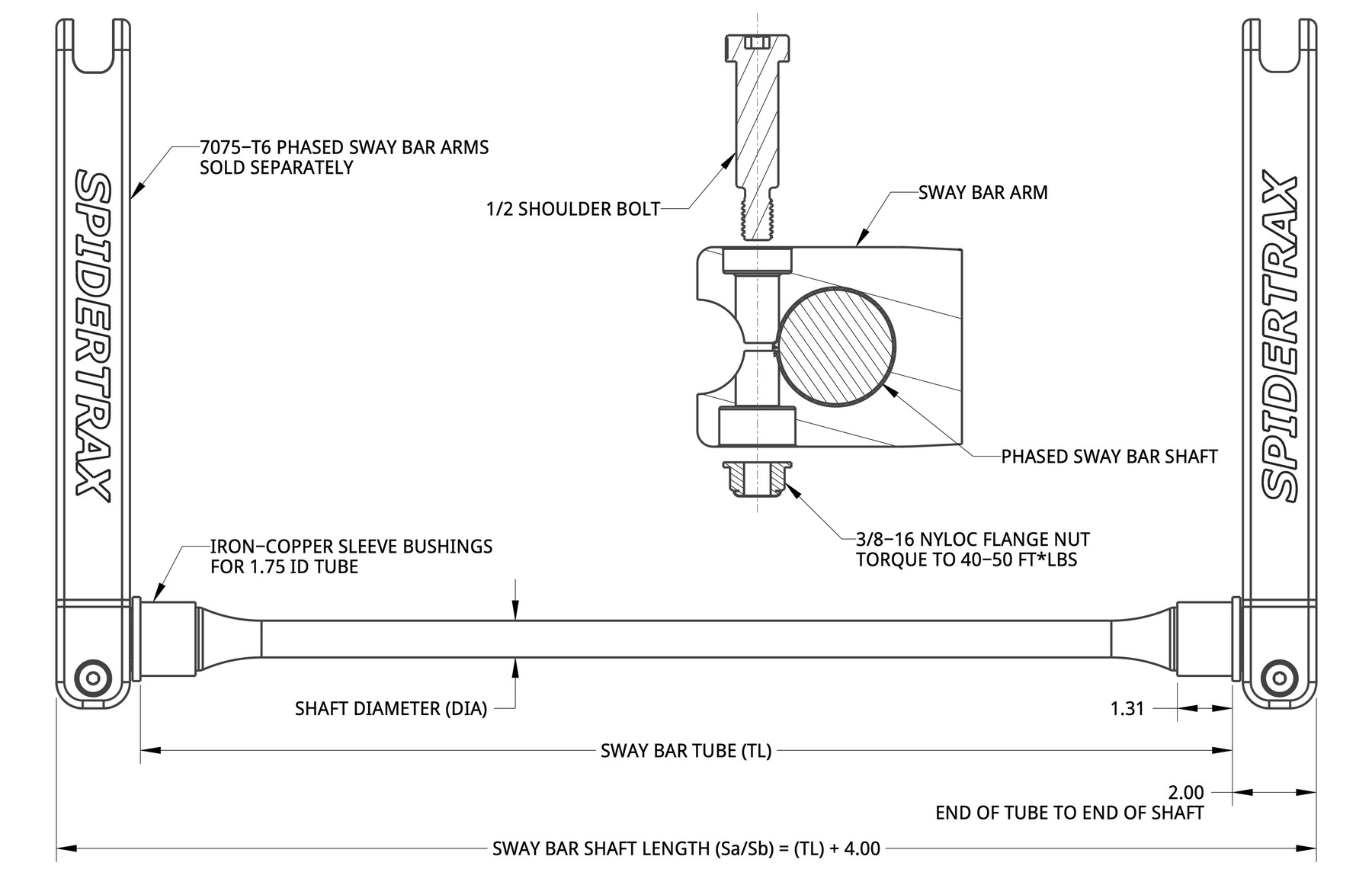

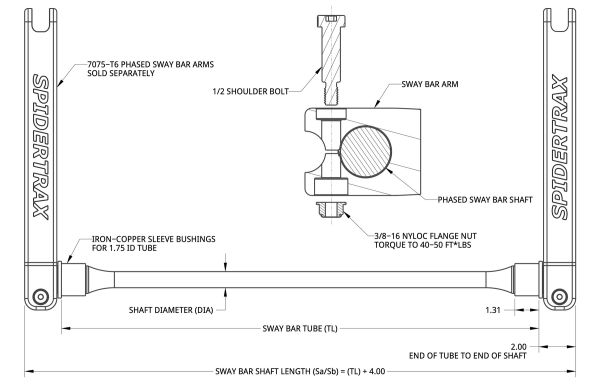

- Active Diameter: 1.00", 1.13", 1.25", 1.37"
- Sa/Sb: 45.0 – 50.0
Please verify configuration, spline count, tube diameter and installation dimensions before ordering. Dimensions for made-to-order components will be confirmed after the order.
