- CNC Machined Components are Made to the Strictest Tolerances
- 7/8" Polished Nitro Steel Shafts for Strength and Durability
- 2-1/2" Diameter Triple Bypass for Position Sensitive Damping
- Externally Adjustable Bypass Technology
- Multi-Seal Carrier to Ensure Zero Leakage
- Remote Reservoirs with Installation Hardware
- Specifically Formulated 7wt, Full Synthetic Shock Oil
- Completely Adjustable and Rebuildable Using Simple Tools

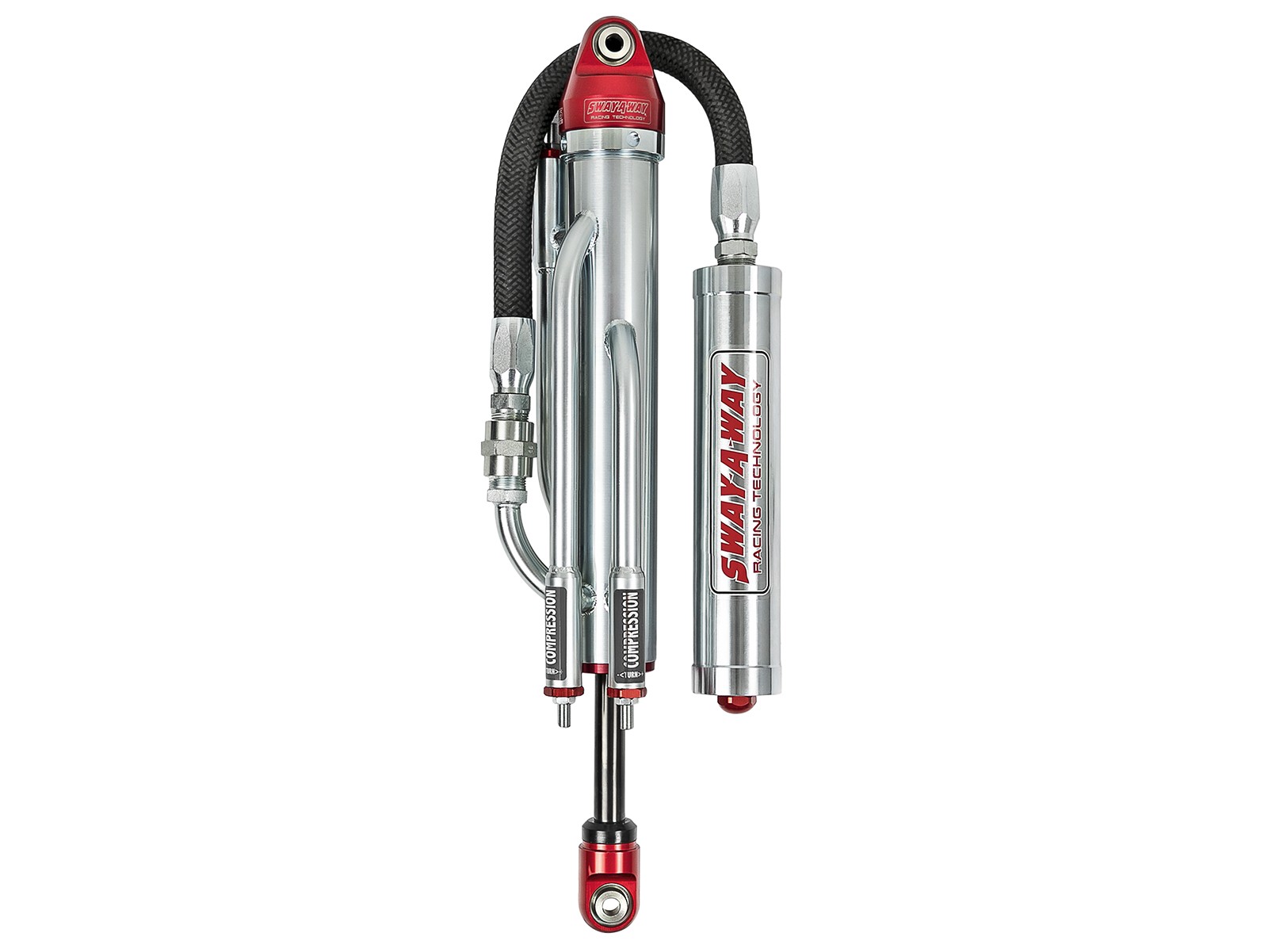

Applying our proven research and development processes, we have freshly revamped Sway-A-Way’s High Performance Universal Race Shocks. As with all other Sway-A-Way products, these 2-1/2” diameter Bypass Shocks are 100% designed and built in the USA. They feature red anodized CNC machined aluminum components and nickel flashed, zinc plated, and clear coated steel cylinder bodies for exceptional corrosion resistance. The 7/8" NitroBrite polished steel shafts provide longer seal life and are harder than standard chrome shafts. These position sensitive bypass shocks have two compression tubes and one rebound tube to allow for nearly infinite external tuning to deliver the ride quality that suits your specific needs. Bypass shocks are available with piggyback reservoirs for easy mounting, or remote reservoirs for when space is limited.
| Travel |
Extended Length |
Compressed Length |
| 08 |
22,85 |
14,36 |
| 10 |
26,4 |
16,36 |
| 12 |
31,53 |
19,05 |
| 14 |
35,53 |
21,05 |
| 16 |
40,56 |
24,05 |
| 18 |
44,56 |
26,05 |
all sizes in inch
