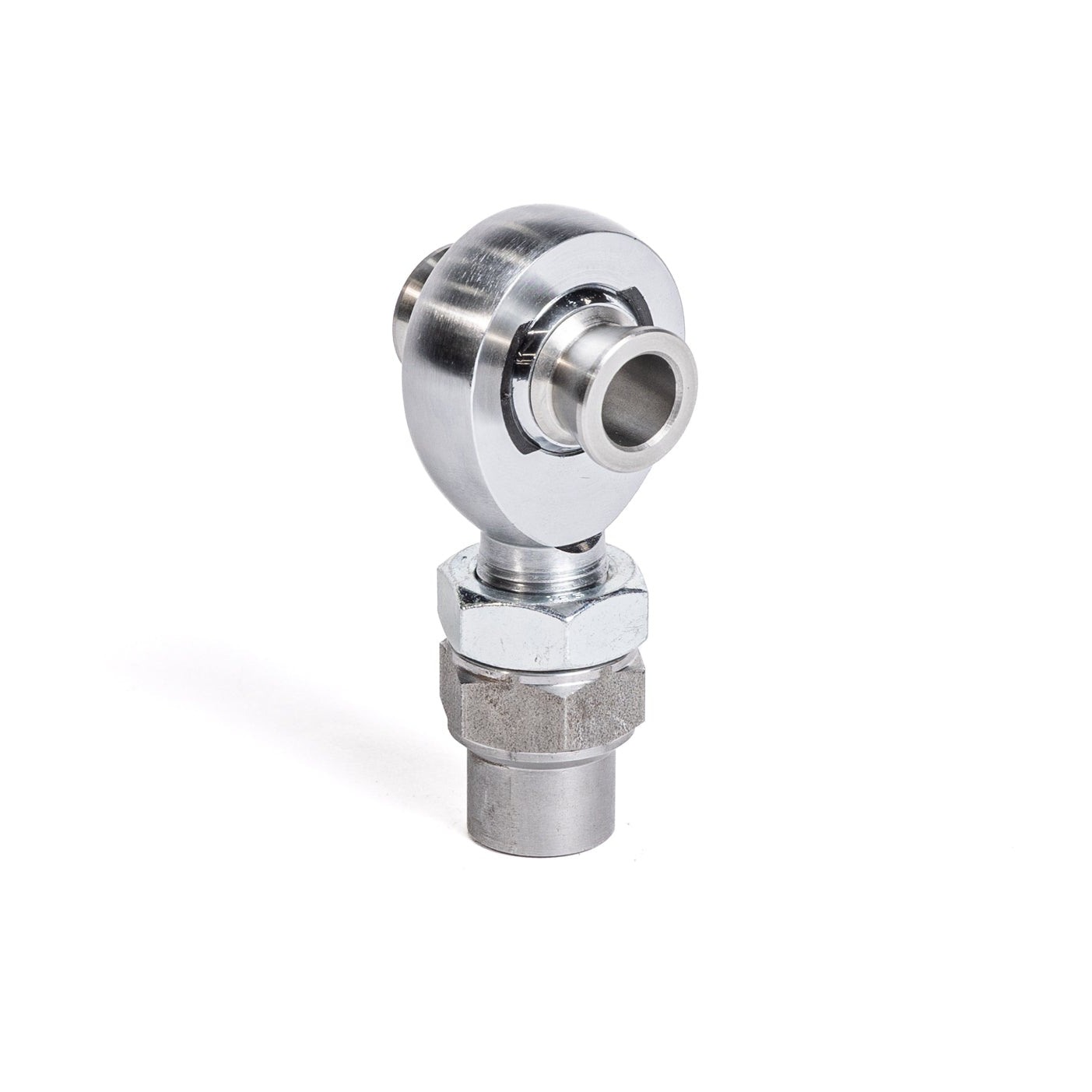

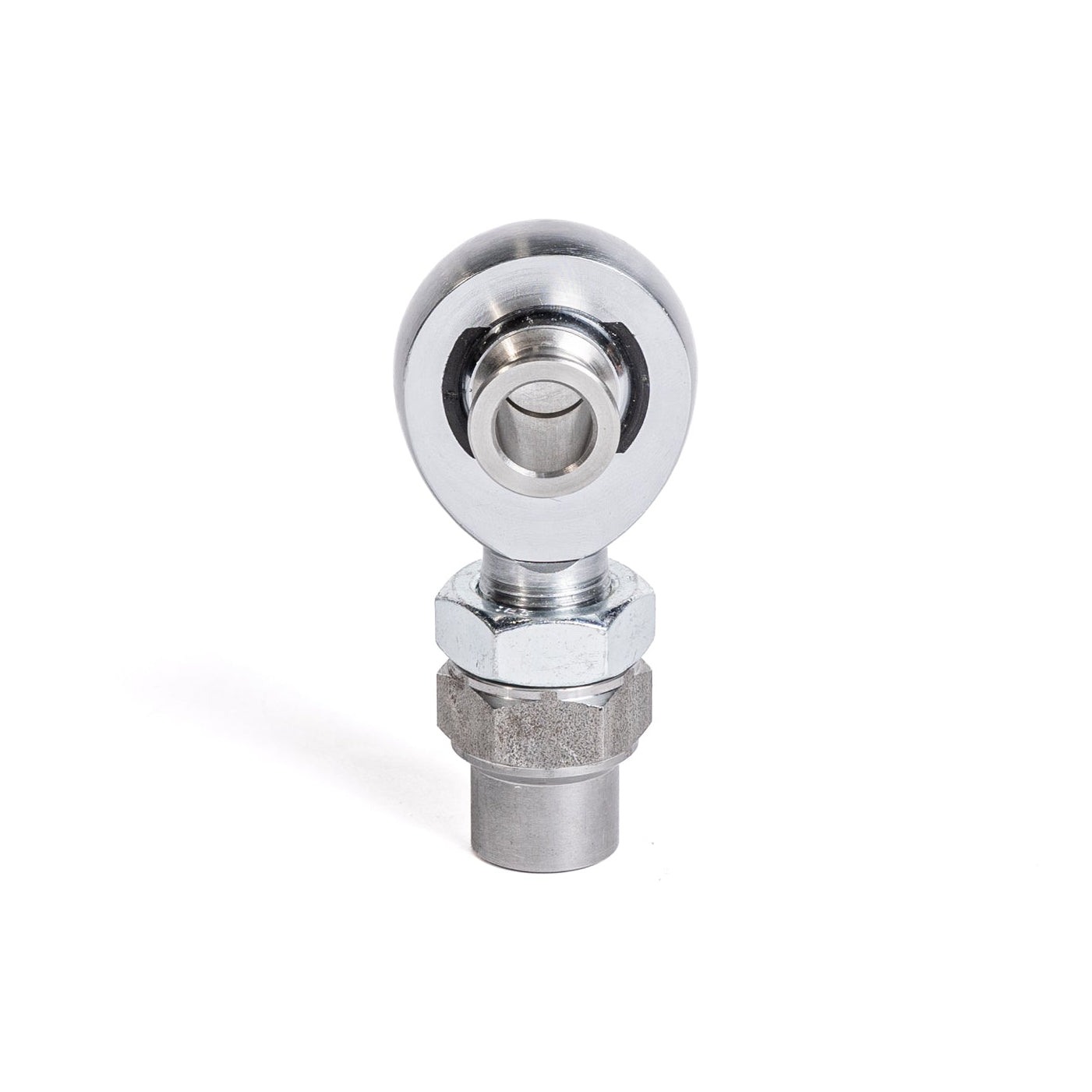

7/8” Rod End (Heim Joint) Package with Hex Tube Adapter by TMR Customs for demanding off-road, motorsport and suspension applications.

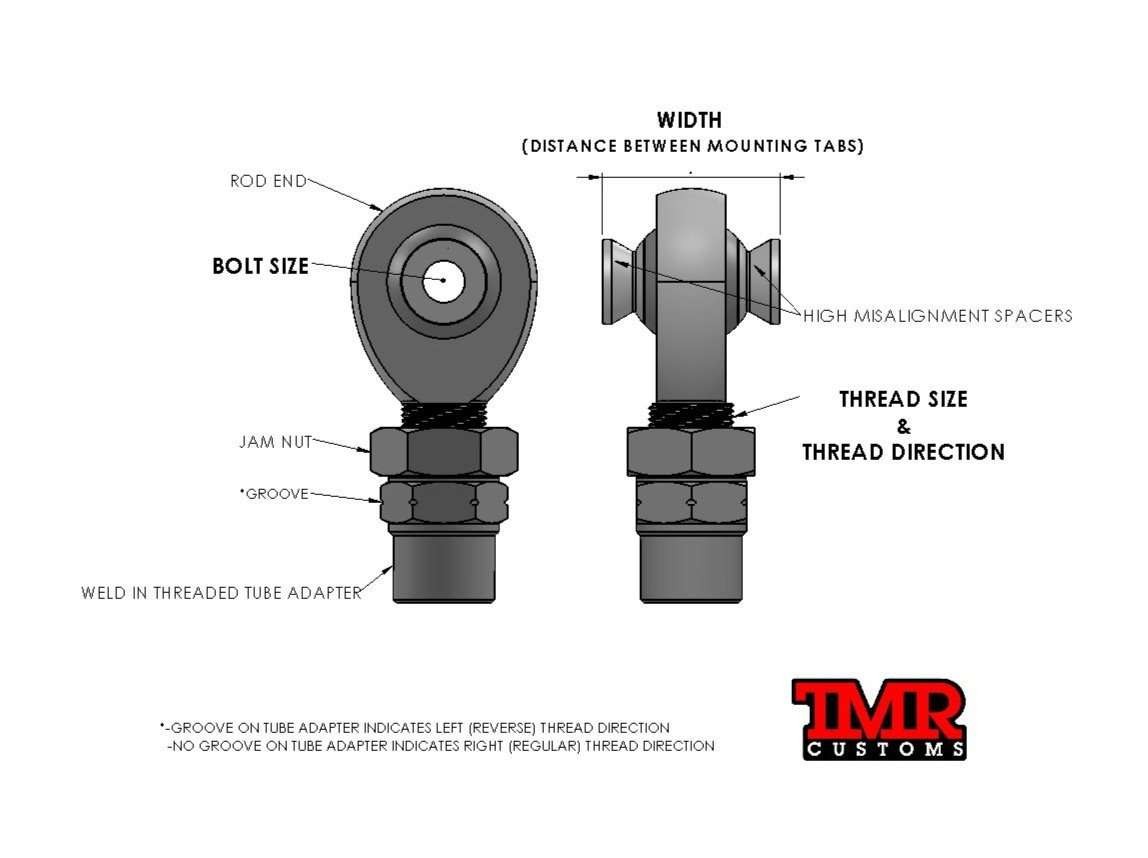

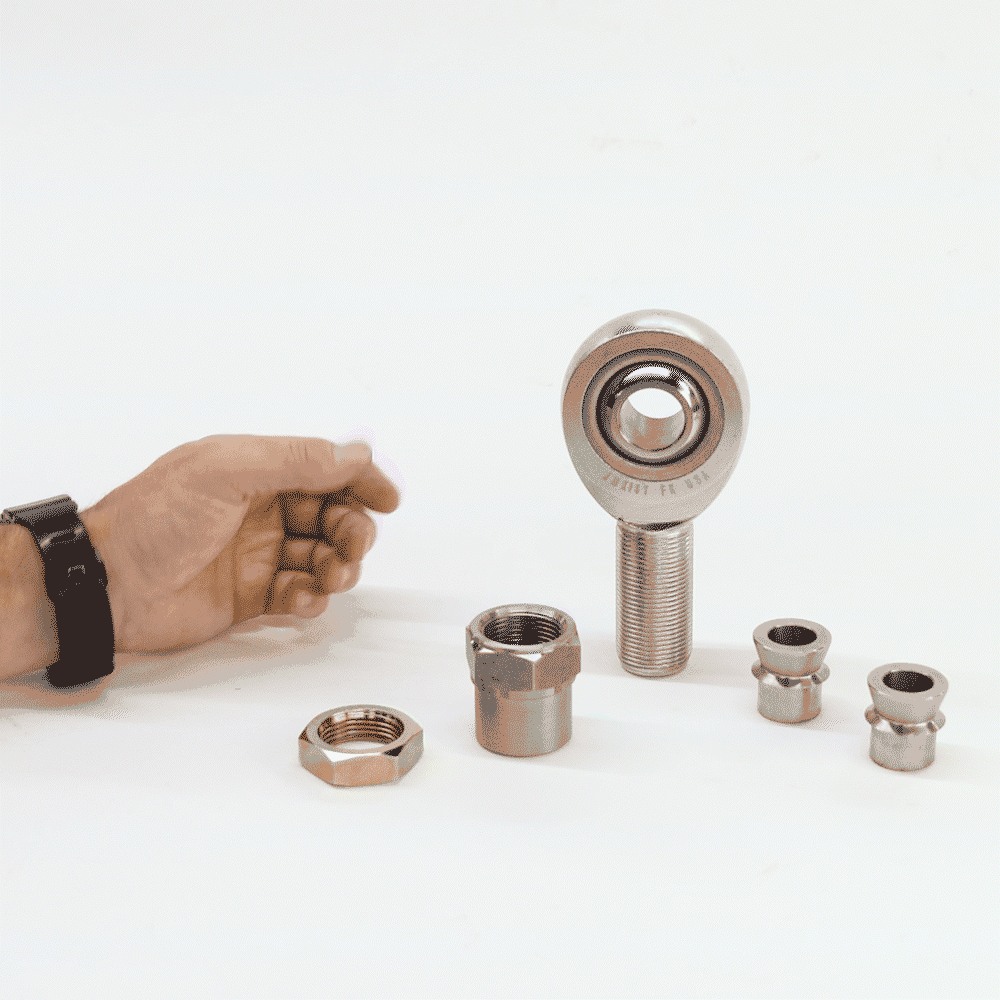

Our rod end package includes the following: • 1 x 7/8”-14 heat treated chromoly rod end/heim joint • XM12-14 series for 1/2”, 9/16”, 5/8” bolt size • XM14 series for 3/4” bolt size • 1 x jam nut • 1 x weld in mild steel HEX tube adapter (fits 1" inside diameter tubing) • 2 x stainless steel high misalignment spacers
- Product group: Gelenkaugensets
- Available versions:
- 7/8” - LEFT (REVERSE) / 1/2” BOLT - 2” WIDTH
- 7/8” - LEFT (REVERSE) / 9/16” BOLT - 2” WIDTH
- 7/8” - LEFT (REVERSE) / 5/8” BOLT - 2” WIDTH
- 7/8” - LEFT (REVERSE) / 3/4” BOLT - 2” WIDTH
- 7/8” - LEFT (REVERSE) / 9/16” BOLT - 2-5/8” WIDTH
- 7/8” - LEFT (REVERSE) / 5/8” BOLT - 2-5/8” WIDTH
- 7/8” - LEFT (REVERSE) / 3/4" BOLT - 2-5/8" WIDTH
- 7/8” - LEFT (REVERSE) / 9/16" BOLT - 1.6" WIDTH
- 7/8” - RIGHT (REGULAR) / 1/2” BOLT - 2” WIDTH
- 7/8” - RIGHT (REGULAR) / 9/16” BOLT - 2” WIDTH
- 7/8” - RIGHT (REGULAR) / 5/8” BOLT - 2” WIDTH
- 7/8” - RIGHT (REGULAR) / 3/4” BOLT - 2” WIDTH
- 7/8” - RIGHT (REGULAR) / 9/16” BOLT - 2-5/8” WIDTH
- 7/8” - RIGHT (REGULAR) / 5/8” BOLT - 2-5/8” WIDTH
- 7/8” - RIGHT (REGULAR) / 3/4" BOLT - 2-5/8" WIDTH
- 7/8” - RIGHT (REGULAR) / 9/16" BOLT - 1.6" WIDTH
Please verify thread direction, thread size, bore, mounting width and tube dimensions before ordering.
