Spidertrax Ultimate U-Joint

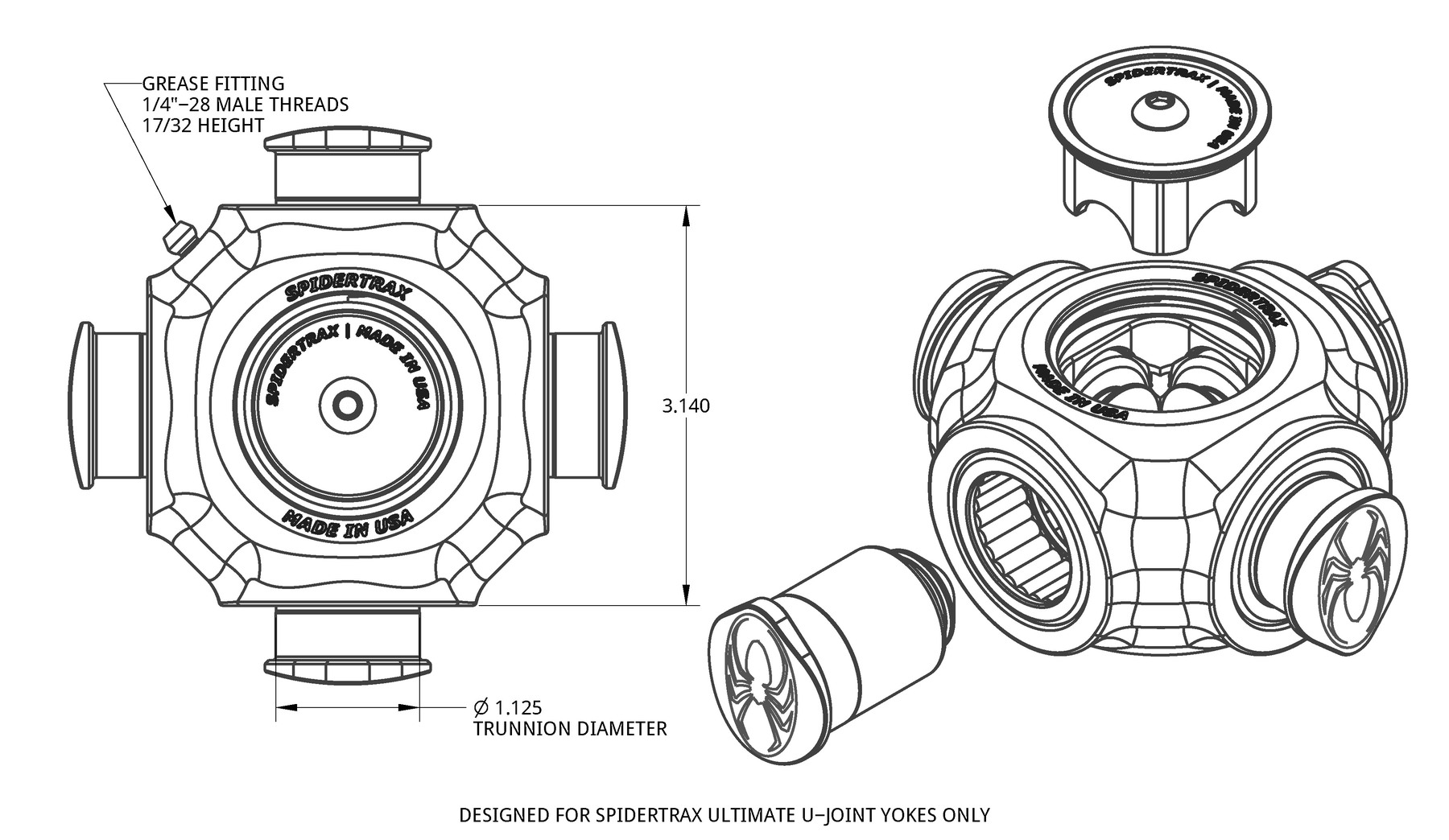

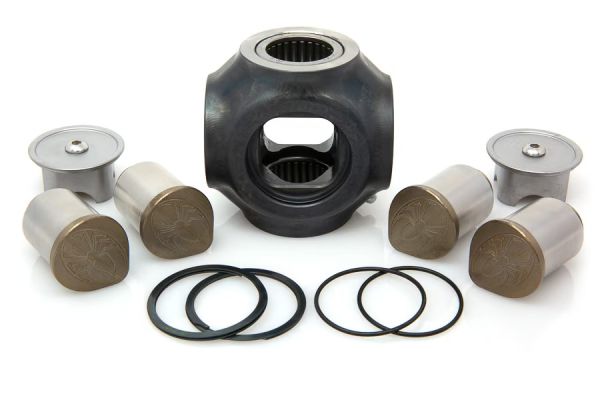

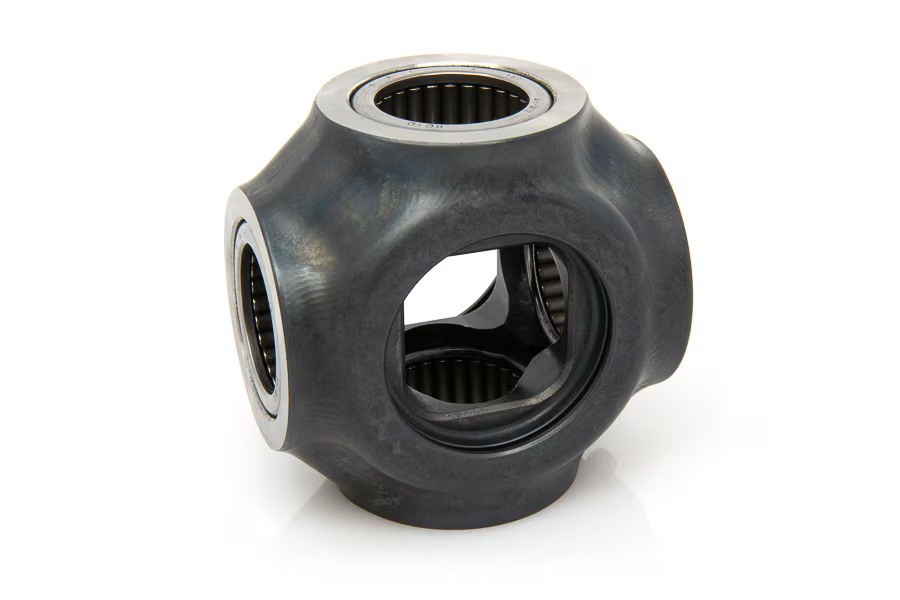

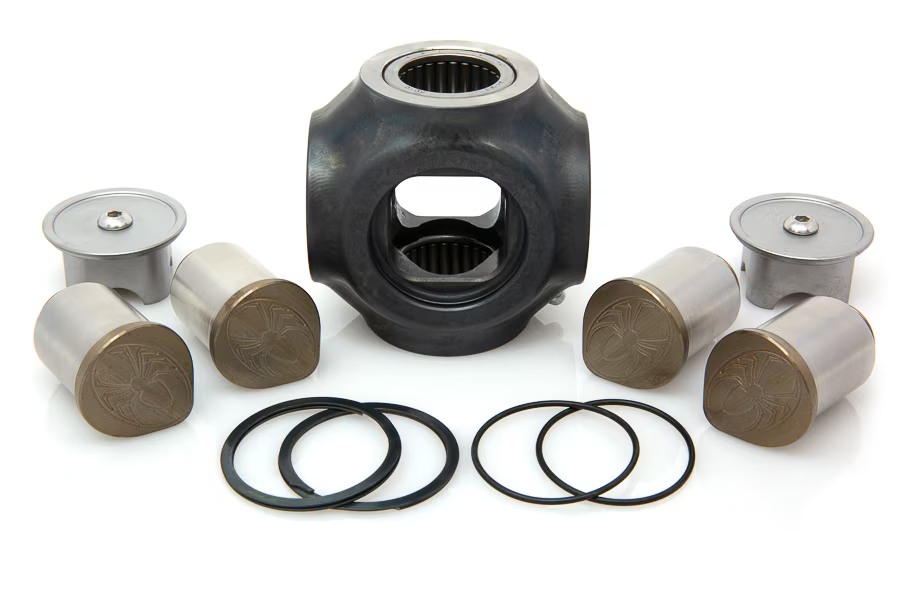

The Spidertrax Ultimate U-Joint sets a new standard for off road durability and performance. Equipped with needle bearings to reduce internal wear, it delivers smooth operation and consistent performance in the harshest terrains. At the core of these u joints is a substantial 1.125 inch trunnion diameter, providing exceptional strength and resilience. Each Ultimate U-Joint includes a central body with preinstalled needle bearings, four trunnions, and two caps with snap rings and O rings. Comparable to a 1480 series u-joint, the Ultimate U-Joint features a larger outer diameter, expanded ear to ear width, and oversized trunnions, positioning this joint at the top of its class. Proudly made in the USA.
- Spidertrax part number: AXLUSJN
- Category: Spidertrax > Solid Axle Shafts > U-Joints
- Delivery time: approx. 6 weeks
Please verify configuration, spline count, tube diameter and installation dimensions before ordering. Dimensions for made-to-order components will be confirmed after the order.
