Spidertrax 1480 40 Spline Stub for Ultimate Unit Bearings

Spidertrax 1480 40 Spline Stub for Ultimate Unit Bearings

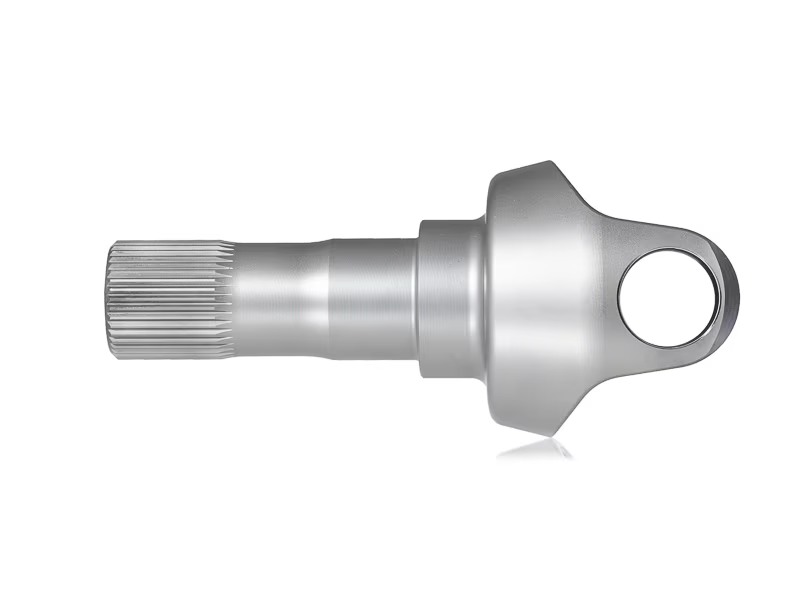

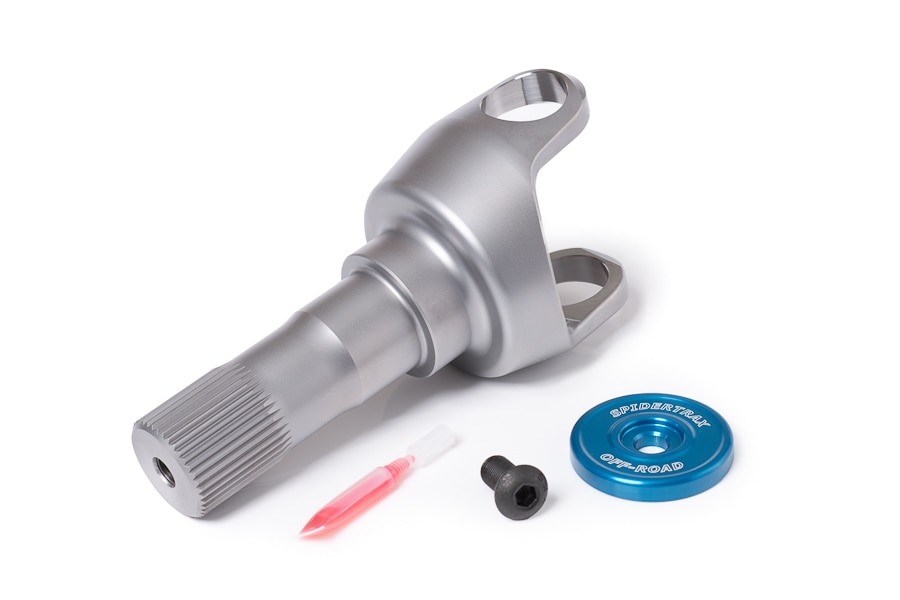

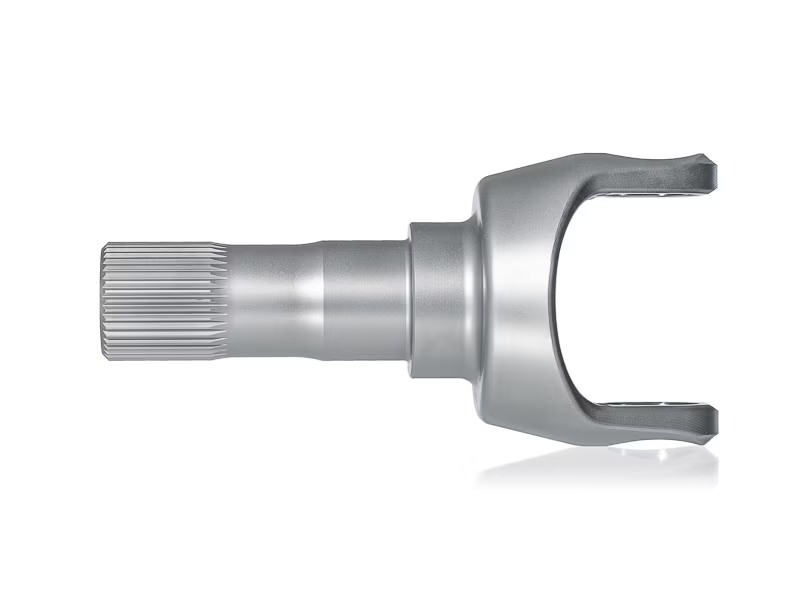

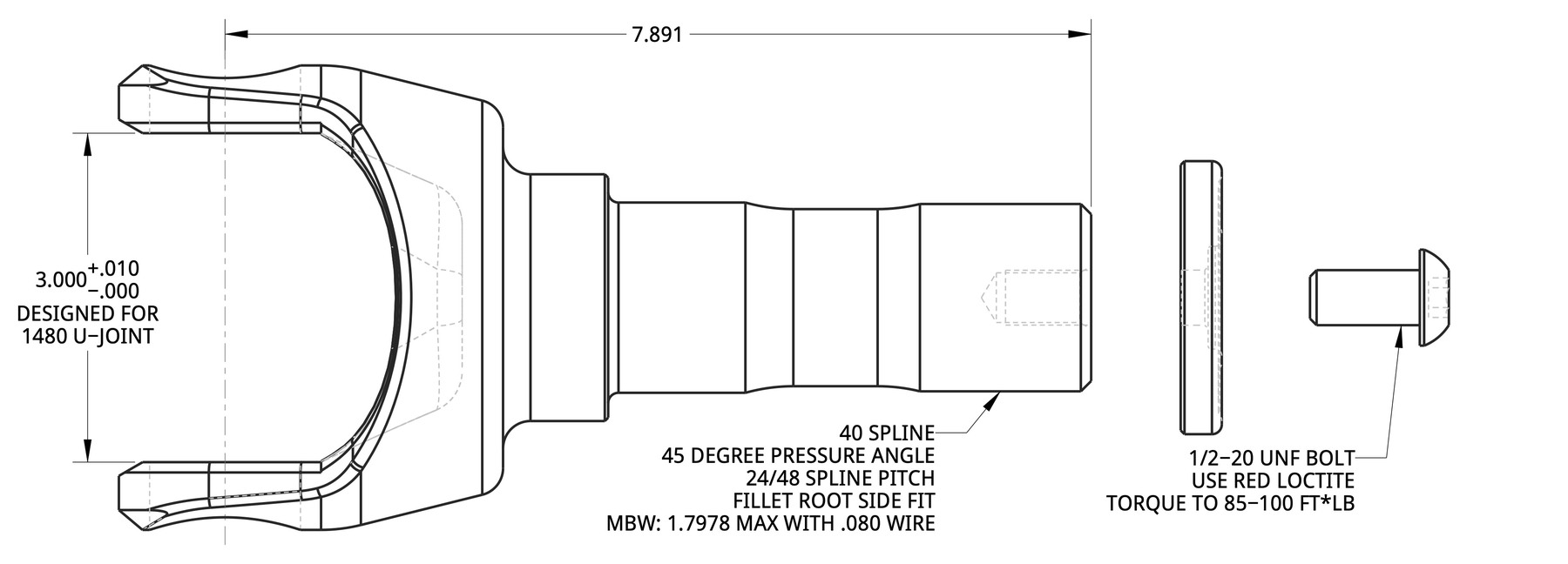

Sometimes it’s best to take a step back, look at an already proven design with an open minded attitude, and start from scratch. This may sound strange, why change something if it’s already working? It’s the heart of engineering, with Ultra4 growing as fast as it is staying on top of the curve is the best insurance you can have for securing that next podium finish. Say hello to the all new 1480 40 Spline Stub Shaft, a reinvention of our already proven 35 spline stub shafts. Manufactured out of billet 300M aerospace material, with an integrated positive locking design, all while achieving 50° of steering, it’s the next best thing in stub shaft technology… and the last stub shaft you will ever need. These 1480 40 Spline Stub Shafts are designed to work with 60 style u-joints and Spidertrax 40 Spline Ultimate Unit Bearings.

• Spidertrax part number: AXLLSKU40M
• Category: Spidertrax > Solid Axle Shafts > Stub Shafts
• Delivery time: approx. 6 weeks

Please verify configuration, spline count, tube diameter and installation dimensions before ordering. Dimensions for made-to-order components will be confirmed after the order.
