Spidertrax Ultimate Knuckle (4 in.) Chromoly, Mid Steering

Spidertrax Ultimate Knuckle (4 in.) Chromoly, Mid Steering

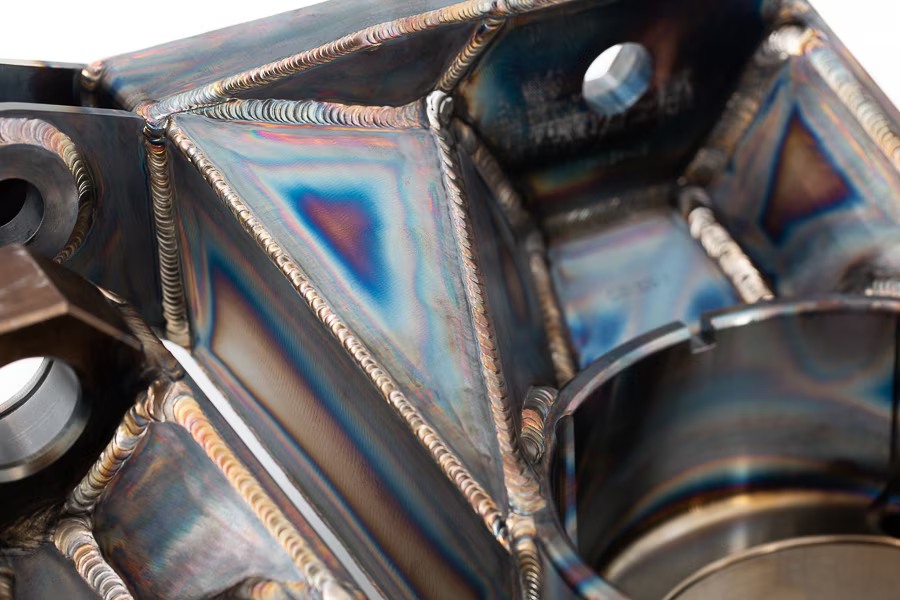

Light as always. Stronger than ever. We introduced our first fabricated knuckle over a decade ago. Today, our chromoly Ultimate Knuckle takes professional rock racers to an all new level. Tig welded, heat treated legs, and a fully integrated double shear high steer arm (optional) makes our latest generation Ultimate Knuckle our best yet. All while holding the same compact & lightweight design philosophy you have come to expect. This Ultimate Knuckle is designed for Ultimate Unit Bearings & Ultimate U-Joints, and installs on any Spider 9 Housing w/ 4" OD tubes. High steer arms not included.

• Spidertrax part number: CSKT4OM
• Category: Spidertrax > Knuckles & End Cups > 4 in. Tube > Ultimate Knuckles
• Delivery time: approx. 6 weeks

Please verify configuration, spline count, tube diameter and installation dimensions before ordering. Dimensions for made-to-order components will be confirmed after the order.
