Spidertrax Ultimate Knuckle (4 in.) Chromoly, Standard Steering

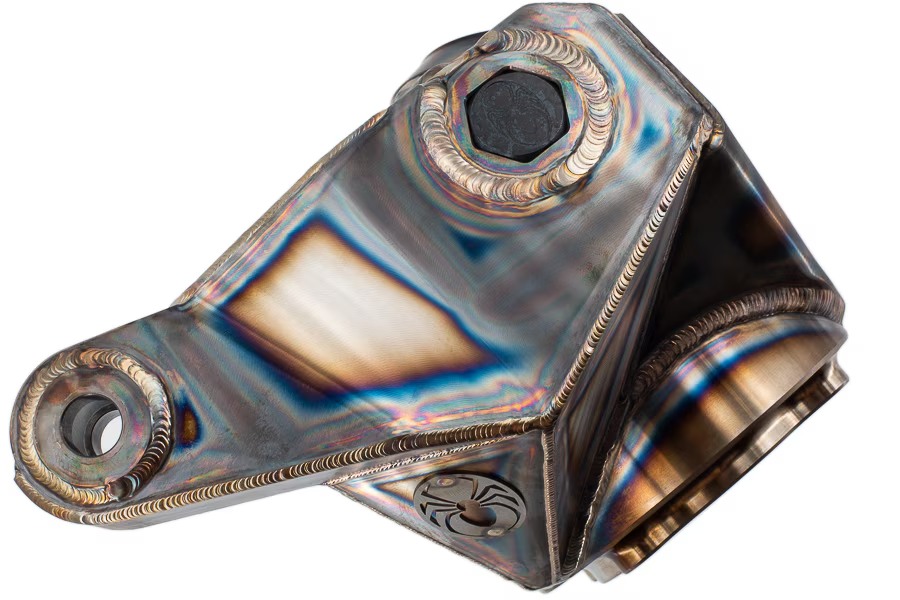

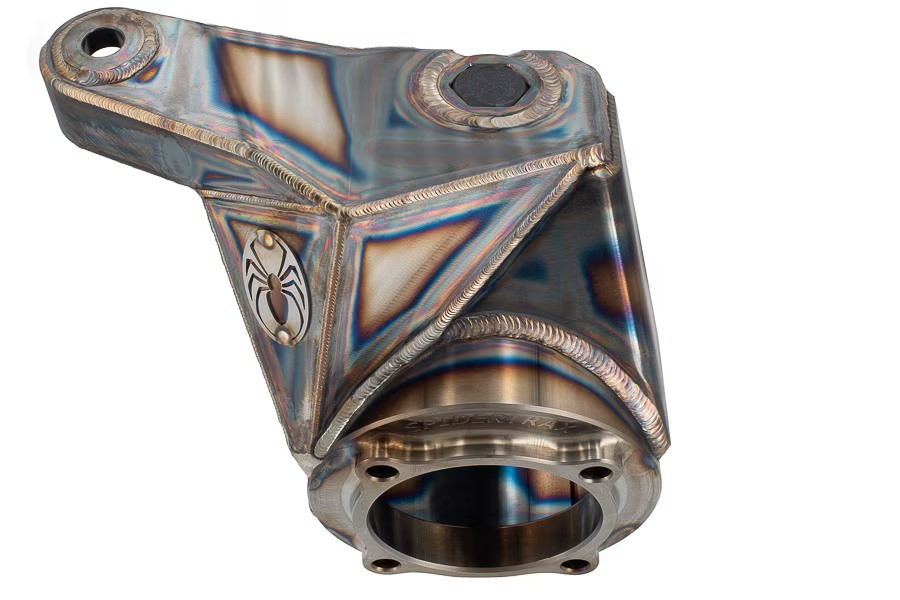

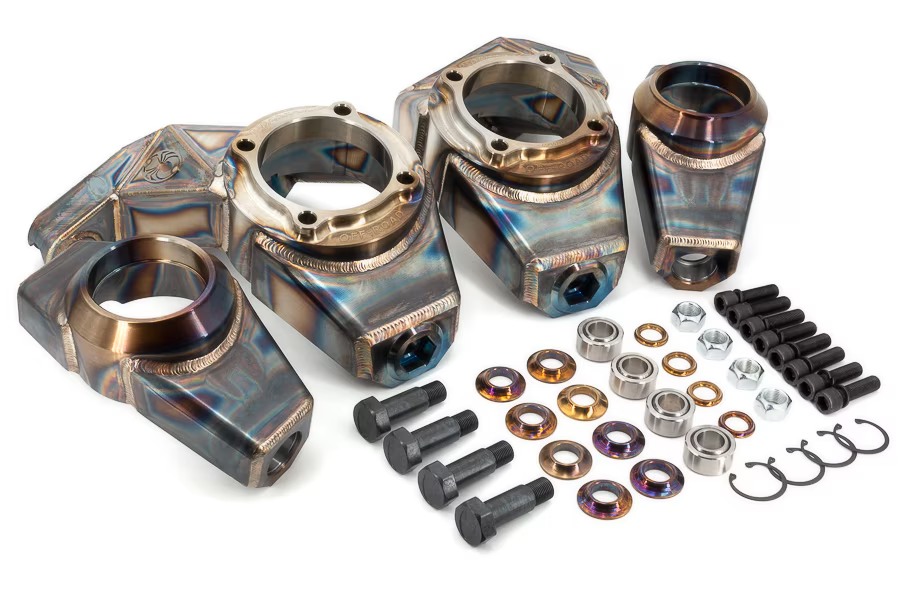

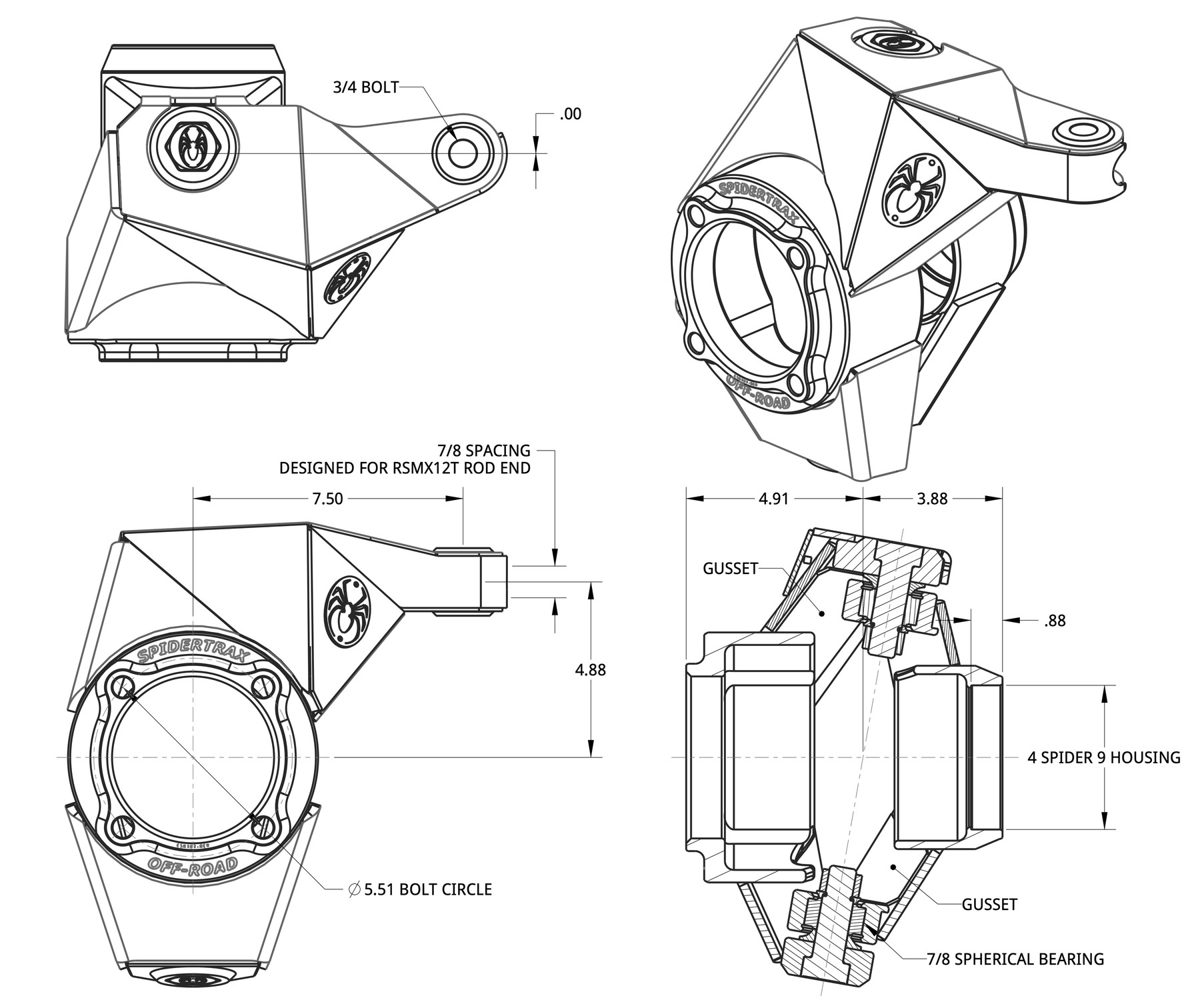

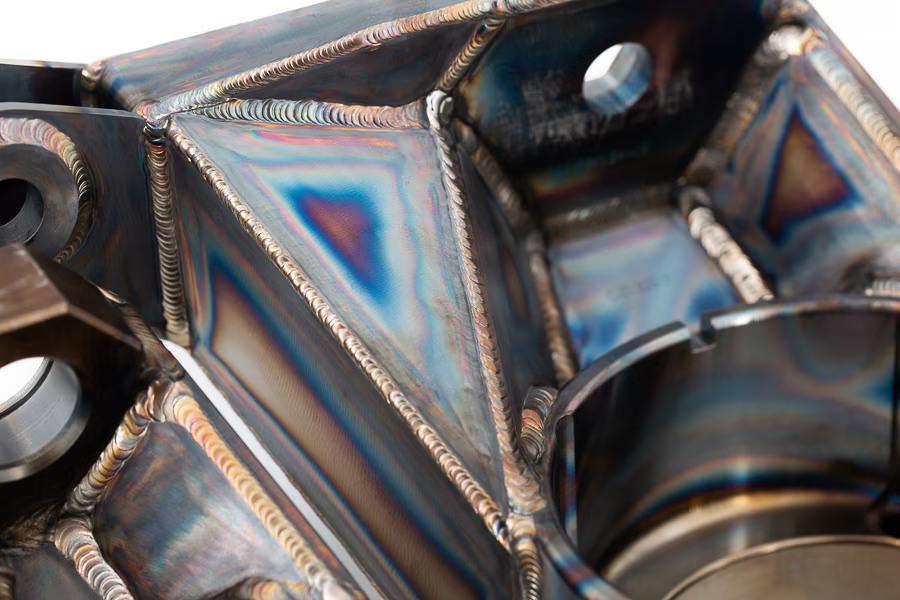

Light as always. Stronger than ever. We introduced our first fabricated knuckle over a decade ago. Today, our chromoly Ultimate Knuckle takes professional rock racers to an all new level. Tig welded, heat treated legs, and a fully integrated double shear high steer arm makes our latest generation Ultimate Knuckle our best yet. All while holding the same compact & lightweight design philosophy you have come to expect. Please note photos shown here are of our "mid" steer arm setup. Please refer to the drawing below for arm location details. This Ultimate Knuckle is designed for Ultimate Unit Bearings & Ultimate U-Joints, and installs on any Spider 9 Housing w/ 4" OD tubes. As shown, a fully pre-welded double shear high steer arm is included.
- Spidertrax part number: CSKT4OL
- Category: Spidertrax > Knuckles & End Cups > 4 in. Tube > Ultimate Knuckles
- Delivery time: approx. 6 weeks
Please verify configuration, spline count, tube diameter and installation dimensions before ordering. Dimensions for made-to-order components will be confirmed after the order.
