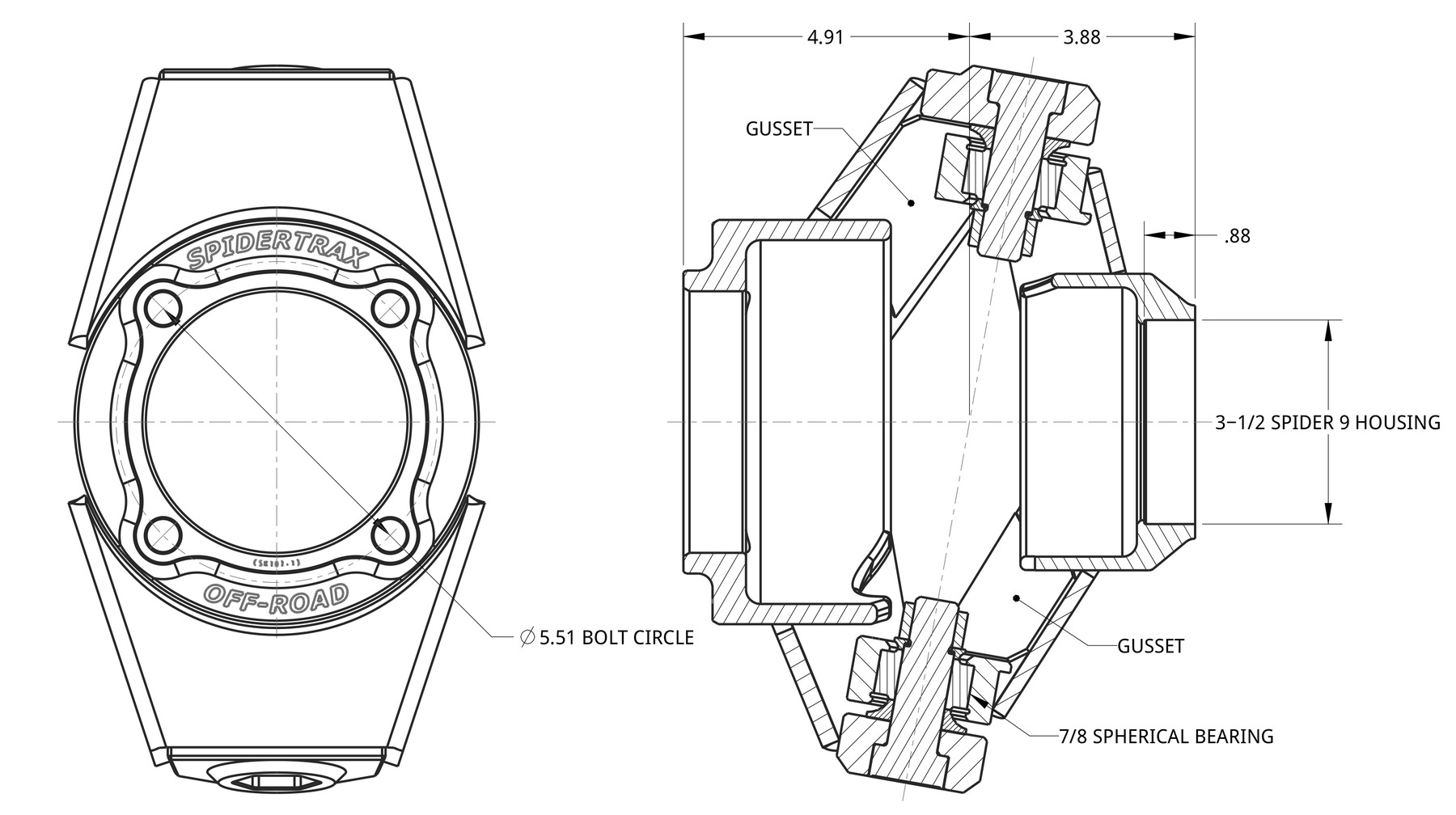

Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – technical detail 1
Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms
Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – image 2
Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – image 3
Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – image 4
Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – technical detail 1
Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms
Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms
Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – image 2
Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – image 3
Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – image 4
Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – technical detail 1
Mobile Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms
Mobile Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – image 2
Mobile Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – image 3
Mobile Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – image 4
Mobile Preview: Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms – technical detail 1
NEW

Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms

Product No.:
ST-CSKT312OP
Shipping time:
2 Weeks 2 Weeks (abroad may vary)
4.498,50 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Spidertrax Ultimate Knuckle (3.5 in.) Chromoly, No Steer Arms

Light as always. Stronger than ever. We introduced our first fabricated knuckle over a decade ago. Today, our chromoly Ultimate Knuckle takes professional rock racers to an all new level. Tig welded, heat treated legs, and a fully integrated double shear high steer arm (optional) makes our latest generation Ultimate Knuckle our best yet. All while holding the same compact & lightweight design philosophy you have come to expect. This Ultimate Knuckle is designed for Ultimate Unit Bearings & Ultimate U-Joints, and installs on any Spider 9 Housing w/ 3-1/2" OD tubes. High steer arms not included.

  • Spidertrax part number: CSKT312OP
  • Category: Spidertrax > Knuckles & End Cups > 3.5 in. Tube > Ultimate Knuckles
  • Delivery time: approx. 6 weeks

Please verify configuration, spline count, tube diameter and installation dimensions before ordering. Dimensions for made-to-order components will be confirmed after the order.
