Spidertrax Inboard Seal for 40-45 Spline Shafts

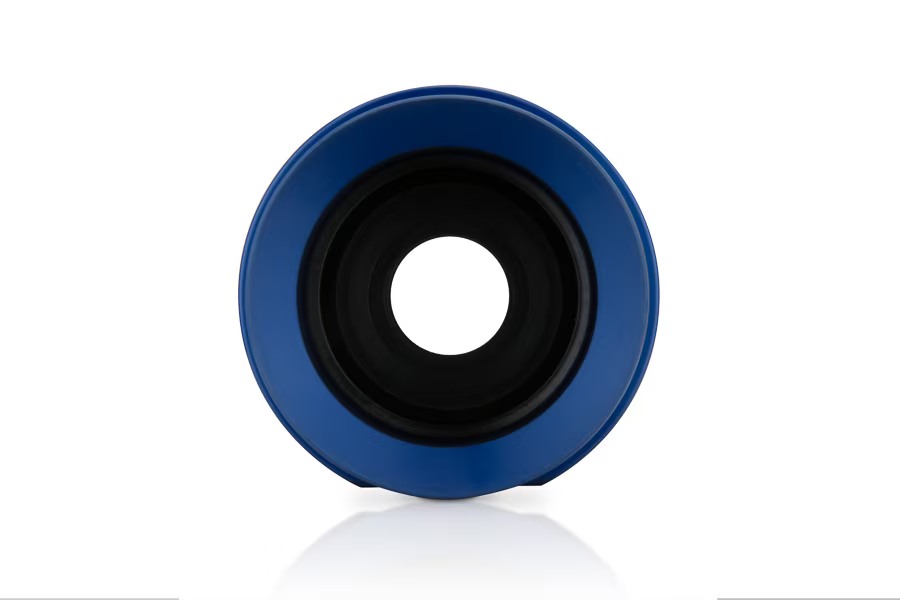

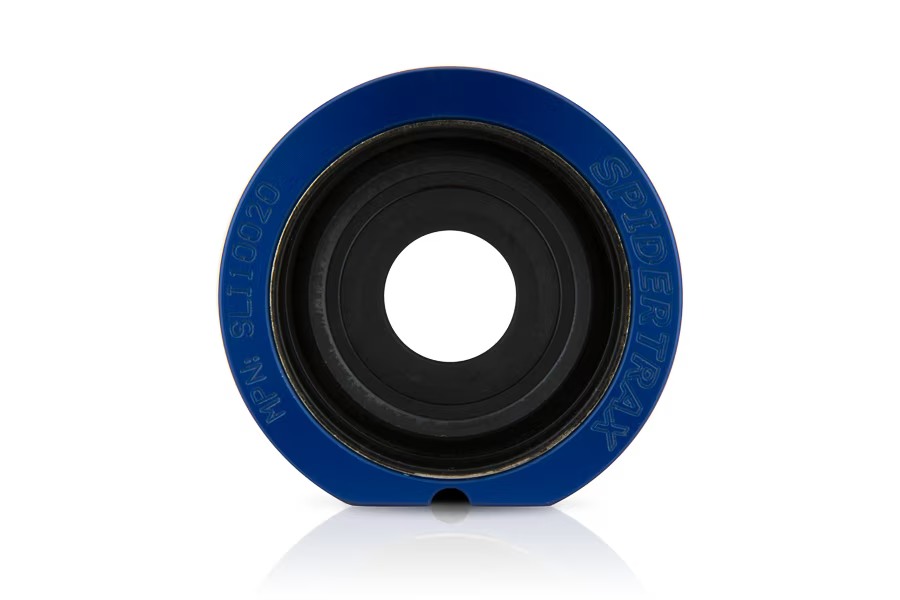

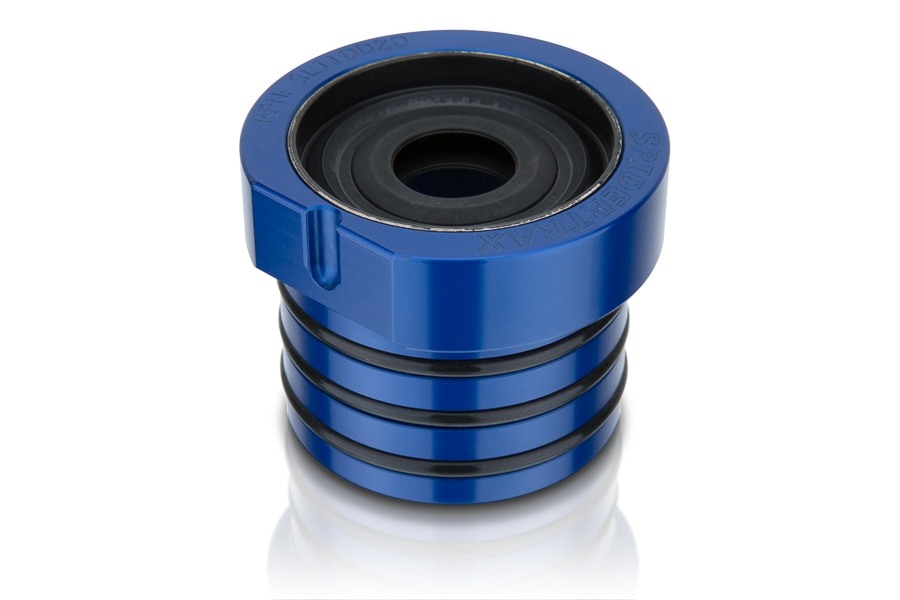

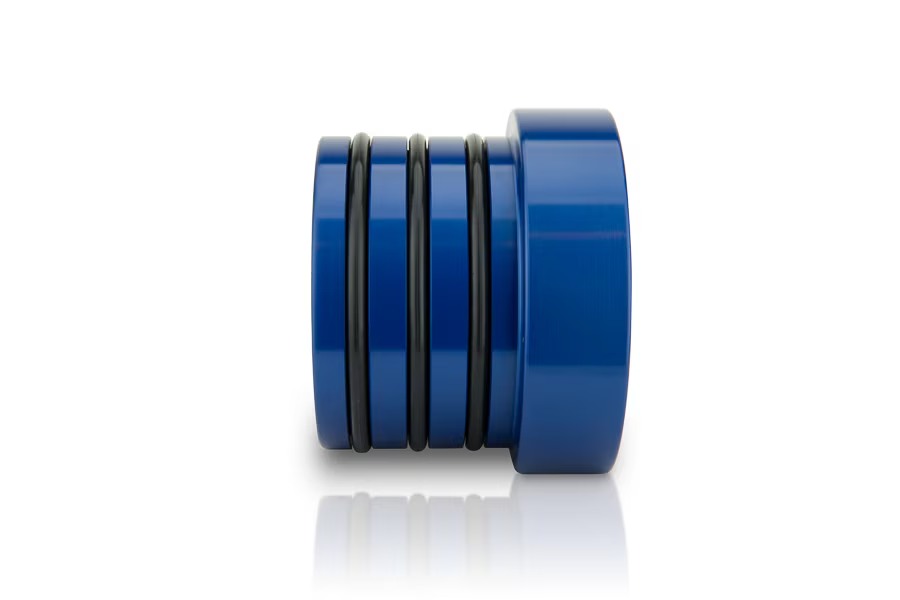

The Spidertrax High Performance Inboard Oil Seal Kit is the perfect solution for sealing up your Spider 9 housing. We start with billet 6061T6 and machine a fully rebuildable seal housing that accommodates three external o-rings and two high performance axle shaft seals (both o-rings & seals are pre-installed). With up to five total sealing surfaces, this kit ensures oil stays where it belongs, inside the housing. Seal is designed to install on the inboard side of your Spider 9 (installs near your diff). Please note, this Inboard Double Seal works with ALL Spider 9 housings LESS our legacy 3" OD x 3/8" wall Spider 9. If you are in need of an inboard seal for this legacy housing, please click on the Contact Us tab located on the bottom of this page and we'll be happy to help you out. -->
- Spidertrax part number: SLI212120D
- Category: Spidertrax > Axle Housings & Seals > 3.5 in. Tube
- Delivery time: approx. 6 weeks
Please verify configuration, spline count, tube diameter and installation dimensions before ordering. Dimensions for made-to-order components will be confirmed after the order.
